Printer Epson

LX-50

Tipe PrinterDot Matrix Printer
Memori64KB Input Data Buffer
Kecepatan Cetak
  • HIGH SPEED DRAFT : 10 / 12 cpi : 300 / 337 cps
  • HIGH SPEED DRAFT CONDENSED: 17 / 20 cpi : 321 / 300 cps
  • DRAFT: 10 / 12 / 15 cpi : 225 / 270 / 225 cps
  • DRAFT CONDENSED: 17 / 20 cpi : 191 / 225 cps
Pins9 pins
Copy Capabilityoriginal + 3 copies
Black Ribbon Life (million characters)Approx. 2.5 million characters (Draft 10 cpi, 14 dots/character)
Paper Handling
Paper Feeding, Continuos Paper: Push tractor feed, Roll Paper (optional): Friction feed
Paper Path
Tractor Feed: Rear in, Top out, Roll Paper: Rear in, Top out
InterfaceBi-directional parallel interface (IEEE-1284 nibble mode supported); Serial interface; USB 2.0 Full-speed interface
Dimensi275mm (10.8”) x 240mm (9.5”) x 153mm (6.0”)
Berat3.3 kg

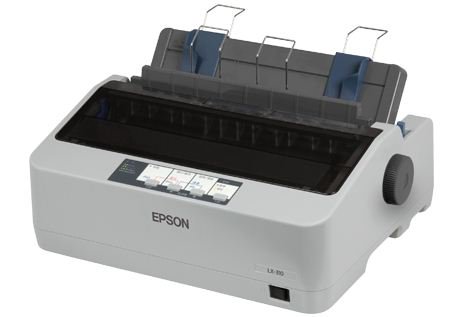

LX-310

Printing MethodImpact dot matrix
Pixel Resolutions Max9 pin, 160 columns max, up to 240 x 216 dpi
Print Speed Black
  • High Speed Draft10/12/15 cpi : 347 / 357 / 390 cps
  • High Speed Draft Condensed17/20 cpi : 383 / 298 cps
  • Draft10/12/15 cpi : 260 / 312 / 223 cps
  • Draft Condensed17/20 cpi : 222 / 260 cps
  • Draft Emphasized10 cpi : 130 cps
  • NLQ10/12/15/17/20 cpi : 65 / 78 / 55 / 47 / 56 cps
Interface
  • USB 2.0 Full-Speed
  • Bi-directional parallel interface (IEEE-1284 nibble mode supported)
Ink Catridge BlackFabric Ribbon Cartridge (Black)
O/S CompatibilityMicrosoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
Ukuran Kertas
  • Cut Sheet (Single Sheet) : Length (100 - 364mm), Width (100 - 257mm), Thickness (0.065 - 0.14mm)
  • Cut Sheet (Multi Part) : Length 100 - 364mm), Width (100 - 257mm), Thickness (0.12 - 0.39mm )
  • Envelope (No.6) : Length (92mm), Width (165mm ), Thickness (0.16 - 0.52mm)
  • Envelope (No.10) : Length (105mm), Width(241mm), Thickness (0.16 - 0.52mm)
  • Continuous Paper (Single Sheet an Multi part) : Length (101.6 - 558.8mm), Width (101.6 - 254.0mm), Thickness (0.065 - 0.39mm)
  • Roll Paper : Width (216mm), Thickness (0.07 - 0.09mm)
Konsumsi Daya
  • Operating : Approx. 27W (ISO/IEC 10561 Letter pattern),(ENERGY STAR compliant)
  • Sleep Mode : Approx. 1.1W
  • Auto Off Mode : Approx. 0.2W (120V), Approx. 0.3W (230V)
Dimensi35.5 x 30 x 16cm (LxWxH)

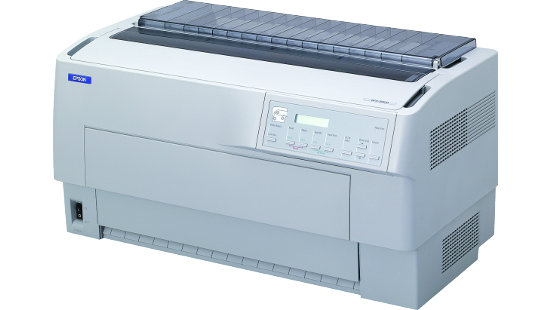

DFX-9000

Tipe PrinterDot Matrix Printer
Memory128KB Input Data Buffer
Kecepatan Cetak1550 cps @ High Speed Draft 10 cpi
Pins9 pins
Copy Capability1 Original + 9 Copies (Front), 1 Original + 6 Copies (Rear)
Kapasitas kertas650 sheets
Paper PathTractor (Front or Rear In, Top Out)
InterfaceStandard: Parallel/RS-232C serial interface Option: Type B I/F level 2
Sistem OperasiMicrosoft® Windows® 98/2000/Me/XP and Microsoft® Windows® NT® 4.0
Dimensi (W x D x H)700 x 378 x 363 mm
BeratApprox 34 kg (75 lb)

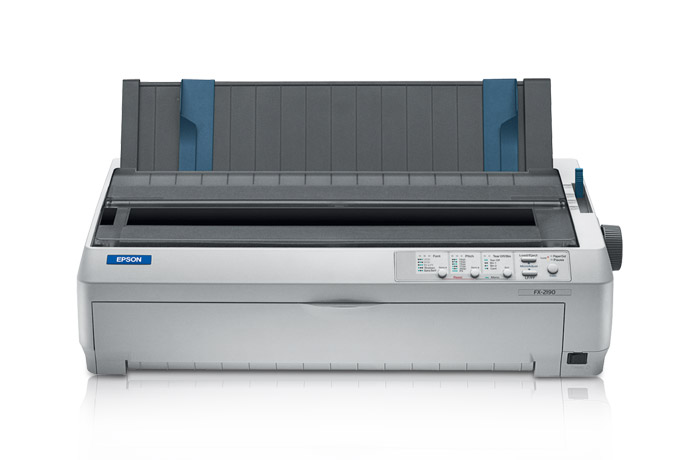

FX-2190

Printing Method9-pin, serial impact dot matrix
Print DirectionBidirectional logic seeking for text and graphics printing. Unidirectional text or graphics printing can be selected using software commands.
Print Speed
  • Ultra Speed Draft: 680 cps (12 cpi); 566 cps (10 cpi)
  • High Speed Draft: 559 cps (10 cpi)
  • Draft: 419 cps (10 cpi)
  • Near Letter Quality: 104 cps (10 cpi)

Characters & Lines


Character Sets
  • 13 character tables
  • 13 international character sets
Resident Bitmapped Fonts
  • Ultra Speed Draft: 10, 12 cpi
  • High Speed Draft: 10, 12, 15, 17, 20 cpi
  • Draft: 10, 12, 15, 17, 20 cpi
  • Near Letter Quality (Roman / Sans Serif): 10, 12, 15, 17, 20 cpi, proportional
Characters per Line136 characters at 10 cpi

Paper Handling


FormsContinuous multipart, original plus 6 carbonless copies, 1 + 6 copies with pull tractor, maximum thickness .018"
Envelopes
  • No. 6 envelopes: 6.5" x 3.6"
  • No. 10 envelopes: 9.5" x 4.1"
Width
  • Single sheets: 3.9" to 10.1"
  • Continuous: 4" to 10"
  • Cut-sheet feeder: 7.2" to 8.5"
Length
  • Single sheets: 3.9" to 14.3"
  • Continuous: 4" to 22"
  • Cut-sheet feeder: 10.1" to 14"
  • Labels: Minimum: 2.5" x 0.94"
Roll paper8.5" width
Paper Feed Speed
  • 62 millisecond per 1/6"
  • 5" per second continuous feed
Paper Path
  • Manual insertion: Front or rear in, top out
  • Cut sheet feeder: Top in, top out
  • Tractor: Front, rear or bottom in, top out
  • Pull push tractor: Front or rear in, top out

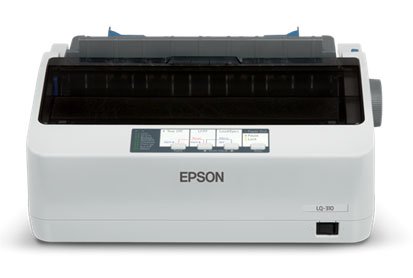

LQ-310

Tipe PrinterDot Matrix Printer
Memori128KB Input Data Buffer
Pins24 pins
Print Direction
Bi-direction with logic seeking
Control CodeESC/P2 and IBM PPDS emulation
Print Speed
  • High Speed Draft 10/12 cpi : 347 / 416 cps
  • Draft 10/12/15 cpi : 260 / 312 / 390 cps
  • Draft Condensed 17/20 cpi : 222 / 260 cps
  • LQ 10/12/15 cpi : 86 / 103 / 129 cps
  • LQ Condensed 17/20 cpi : 147 / 172 cps
Paper Path
Tractor : Rear in, Top out
Manual Insertion : Rear in, Top out
Print Characteristics
Character Sets :
  • Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Bitmap Fonts:
  • Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational
Barcode FontsEAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Printable Columns
Pitch 10/12/15/17/20 cpi : 80 / 96 / 120 / 137 / 160 cpl
Paper Feeding
Standard : Friction, Push Tractor
Optional : Roll Paper Holder
CopiesOriginal + 3 copies
Line Spacing4.23mm (1/6") or programmable in increments of 0.118mm (1/216")
Ribbon Cartridge
Standard : Fabric Ribbon Cartridge (Black)
Ribbon Life : Approx. 2.5 million characters (Draft 10cpi, 48 dots/character)
Acoustic NoiseApprox. 53dB(A) (ISO 7779 pattern)
Mean Print Volume Between Failure (MVBF)Approx. 20 million lines (Except print head)
Mean Time Between Failure (MTBF)Approx. 10,000 POH (25% Duty)
Print Head LifeApprox. 400 million strokes/wire
Control Panel4 switches and 5 LEDs

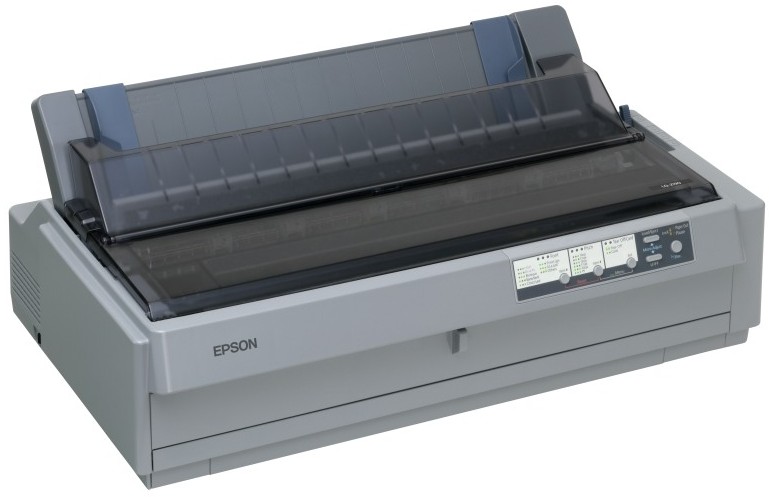

LQ-2190

ModelEpson LQ-2190
Print Speed Black480 cpm
Print Speed ColorLQ: 10 cpi: 120 chars/s, 12 cpi: 144 chars/s, HighSpeed-Draft: 10 cpi: 480 chars/s, 12 cpi: 576 chars/s, Draft: 10 cpi: 360 chars/s, 12 cpi: 432 chars/s
Print TechnologyImpact dot matrix
Print Quality360 x 180 dpi
Media Sizes SupportedSheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Power ConsumptionApprox. 46 W (ISO/IEC10561 Letter pattern), Approx. 3 W in sleep mode
OS SupportWindows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP x64
ConnectivityUSB 2.0 Type B, Ethernet interface (100 Base-TX / 10 Base-T) (optional), Type B interface, Bidirectional parallel, RS-232 (optional)
Dimensions693? x 405 x 268 mm (WxDxH)
Weight13 kg





PLQ-20/20M

Features

  • 24-pin dokumen  / buku tabungan  untuk media hingga 2.6mm tebal
  • Kecepatan cetak tinggi hingga 480cps (10cpi)
  • Menghemat waktu lembar pelurusan otomatis dan cetak otomatis penyesuaian kepala f
  • Mudah untuk mengintegrasikan ke dalam lingkungan TI Anda dengan Olivetti PR2 & Epson ESC / P
  • Kehidupan pita panjang dari 5 juta karakter
  • Opsional kit menghemat ruang termasuk atas baki kertas dan kertas belakang
  • Konektivitas fleksibel dengan Paralel, Serial dan USB interface

Spesifikasi

Technology

  • Printing Method : Impact dot matrix
  • Number of Pins : 24 pins
  • Number of columns : 94 columns
  • Needles : 24 Needles

Print

  • Printing Speed : LQ: 12 cpi: 144 chars/s, 10 cpi: 120 chars/s, NLQ: 10 cpi: 180 chars/s, Draft: 12 cpi: 432 chars/s, 10
  • cpi: 360 chars/s, HighSpeed-Draft: 12 cpi: 576 chars/s, 10 cpi: 480 chars/s
  • Barcodes : Coda bar (NW-7), Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, UPC-A, UPC-E
  • Carbon Copies : 6 plus one original
  • Character Tables : PC437, PC850, PC858, PC864, ISO-8859-1, ISO-8859-15

Connectivity

  • Interfaces : RS-232, Bidirectional parallel, USB 2.0 Type B

Paper / Media Handling

  • Document Feed : Single sheet front, Paper output front and rear, bulk measurement: yes
  • Paper Formats : Sheet Paper (single- and multi-layer), Envelopes
  • Paper Thickness Multi Part : 0.12 mm – 0.53 mm
  • Paper Thickness Single Sheet : 0.065 mm – 0.19 mm

General

  • Energy Use : 59 Watt
  • Supply Voltage : AC 220 V – 240 V,50 Hz – 60 Hz
  • Energy Star : No
  • Product dimensions : 384? x 280 x 203 mm (Width x Depth x Height)
  • Product weight : 7.7 kg
  • Compatible Operating Systems : Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP
  • Mean Time Between Failures : 10,000 Hours
  • Print Head Life : 400 Million Strokes/Wire
  • Sound Pressure : Operation: 53 dB (A)
  • Memory : 64 kB Included
  • Ribbon Yield : 10 characters Black Draft, 5 characters Black LQ

Other Features

  • Emulations : PR2, IBM PPDS, ESC/P2

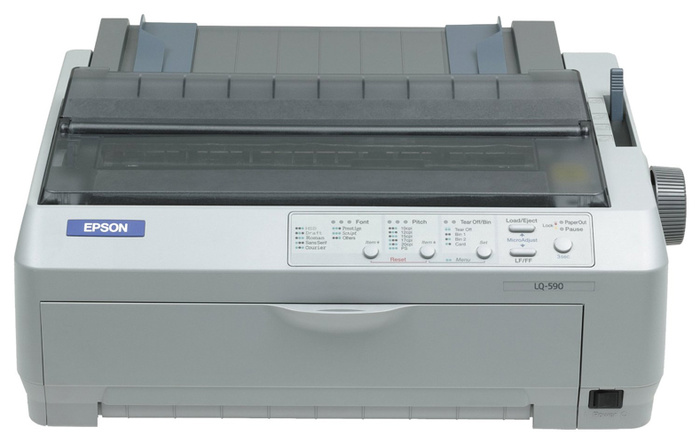

LQ-590

Tipe PrinterDot Matrix Printer
Memori128KB Input Data Buffer
Kecepatan Cetak529 cps (12cpi), 440 cps (High Speed Draft 10cpi)
Pins24 pins
Copy Capability1 original + 4
Paper PathManual Insertion: Front/Rear in, Top out Push Tractor: Front/Rear in, Top out Pull Tractor: Front/Rear/Bottom in, Top out Cut Sheet Feeder: Front/Rear in, Top out
InterfaceBi-directional parallel / USB (ver 1.1) Option: Type B I/F level 2
Sistem OperasiMicrosoft® Windows® 98/2000/Me/XP and Microsoft® Windows® NT® 4.0
Dimensi414 x 350 x 167.5 mm
Berat7.1 kg

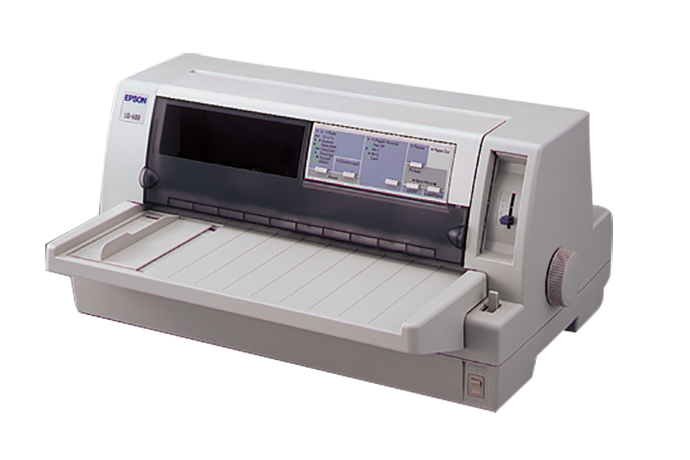

LQ-680PRO

Tipe PrinterDot Matrix Printer
Memori64KB Input Data Buffer
Kecepatan Cetak413 cps (High Speed Draft 10cpi)
Pins24 pins
Copy CapabilityOriginal + 5 copies
Paper PathManual Insertion : Rear in, Top out Push Tractor : Rear in, Top out Pull Tractor : Rear/Bottom in, Top out Cut Sheet Feeder : Rear in, Top out
InterfaceParallel / Expansion slot (Optional Type B interfaces)
Sistem OperasiMicrosoft® Windows® 98/2000/Me/XP and Microsoft® Windows® NT® 4.0
Dimensi497 x 386.5 x 229.5 mm
Berat9.0 kg





DLQ-3500

      Tipe PrinterDot Matrix Printer
      Memori128KB Input Data Buffer
      Kecepatan Cetak550 cps (High Speed Draft 10cpi)
      Pins24 pins
       Copy CapabilityOriginal + 7 copies
       Paper PathManual Insertion: Front in, Front out Push Tractor: Rear in, Front out Cut Sheet Feeder: Rear in, Front out
       InterfaceParallel / USB / Expansion slot (Optional Type B interfaces)
       Sistem OperasiMicrosoft® Windows® 98/2000/Me/XP and Microsoft® Windows® NT® 4.0
       Dimensi660 x 432 x 276 mm
       Berat18.1 kg
