Projector Benq

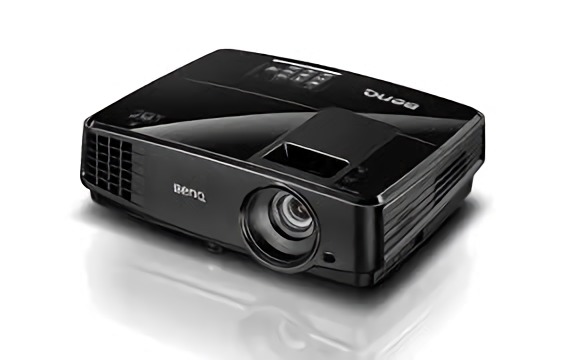

MX507


Sistem ProyeksiDLP
Resolusi AsliXGA (1024 x 768)
Kecerahan*3200 lumens
Rasio Kontras13000:1
Warna1.07 Billion Colors
LensaF=2.56-2.68, f=22.04-24.14mm
Throw Ratio1.96~2.15 (78" @ 3.1m)
Ukuran Image (Diagonal)60"~180"/ 300' (Clear Focus/ Maximum)
Rasio Zoom1.1:1 (Powered)
Lamp Wattage190W
Projection Offset120% ±5%
Resolution SupportVGA (640 x 480) to UXGA (1600 x 1200)
Frekuensi Horisontal15K~102KHz
Tingkat Vertical Scan23~120Hz
Dimensi (W x H x D)283 x 95 x 222mm (include feet)
283 x 88.7 x 222mm (exclude feet)
Kompatibiltas HDTV480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Kompatibilitas VideoNTSC, PAL, SECAM
3D Support and CompatibilityFrame Sequential: Up to 720p 60Hx (Video), Up to WXGA 120Hz (PC Timing)
Side by Side: Up to 1680 x 1050 60Hz (PC Timing)
Top Bottom: Up to 1680 x 1050 60Hz (PC Timing)
Modus GambarDynamic/ Presentation/ sRGB/ Cinema/ User 1/ User 2
Aksesoris (Standar)Remote Control w/ Battery
Power Cord (by region)
Quick Start Guide
Warranty Card (by region)
VGA (D-sub 15pin) Cable
Lamp Mode (Normal/Economic/SmartEco/LampSave)*4000/ 6000/ 6500/ 10000 hours
Keystone Adjustment1D, Vertical +/- 40 degrees
Tingkat Kebisingan Suara33/ 28 dBA (Normal/ Economic mode)
Pasokan DayaAC100 to 240V, 50 to 60Hz
Pemakaian DayaNormal 270W, Eco 220W, Standby < 0.5W
Tampilan Bahasa pada LayarArabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Aksesoris (Pilihan)Spare Lamp Kit
Ceilling Mount
3D Glasses
Carry Bag
Berat1.8kg
InterfaceComputer In (D-sub 15pin) x 2 (Share with component)
Monitor Out (D-sub 15pin) x 1
Composite Video In (RCA) x 1
S-Video In (Mini DIN 4pin) x 1
Audio In (Mini Jack) x 1
Audio Out (Mini Jack) x 1
Speaker 2W x 1
USB (Type mini B) x 1 (Download & Page/down)
RS232 (DB-9pin) x 1
IR Receiver x 1 (Front)





MX532



















Power SupplyAC100 to 240V, 50 to 60 Hz
Resolusi AsliXGA, 1024 x 768
Kecerahan*3300 ANSI Lumen
Rasio Kontras15000:1
LensaF=2.46-2.66, f=21.8-25.6
Throw Ratio1.94-2.32
Rasio Zoom1.2x
Projection OffsetVertical: 106%±2.5% (Full image height)
Resolution SupportVGA(640 x 480) to WUXGA_RB(1920 x 1200)*RB = Reduced blanking
Frekuensi Horisontal15K-102KHz
Tingkat Vertical Scan23-120Hz
InterfaceComputer in (D-sub 15pin) x2 *integrate with component
HDMI x2
Monitor out x 1
Composite Video in (RCA) x 1
S-Video in x 1
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type mini B) x 1
RS232 (DB-9pin) x 1
IR Receiver x1 (Front)
Dimensi (W x H x D)332.4 x 99 x 241.3 mm
Kompatibiltas HDTV480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Kompatibilitas VideoNTSC, PAL, SECAM
On-Screen Display LanguagesArabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Aksesoris (Standar)Remote Control w Battery (5J.JG706.001)
Warranty Card (by region)
Power Cord (by region)
VGA cable
QSG (4J.JG701.001)
SecuritySecurity bar / Kensington Security Slot
Rasio AspekNative 4:3 (5 aspect ratio selectable)
Power consumption260W(Max), 252W(Normal), 211W(Eco), Standby <0.5W
Aksesoris (Pilihan)Spare Lamp Kit (5J.JG705.001)
3D Glasses (5J.J9H25.002)
Ceiling mount (5J.JAM10.001)
Carry Bag (5J.J8F09.001)
EnvironmentalNoticeLamp in this product contains mercury.
To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org.
Weight_015.24 lbs (2.38 Kg)
3dcompatibilityFrame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 24Hz 1080p
Top Bottom: Up to 60Hz 1080p
projectionsystemDLP
dmdDC3
lightsourceUHP 203W
projectionsize30"~300"
noiselevel32/29 dBA (Normal/Economic mode)
lightsoucelife4500/6000/10000 hours

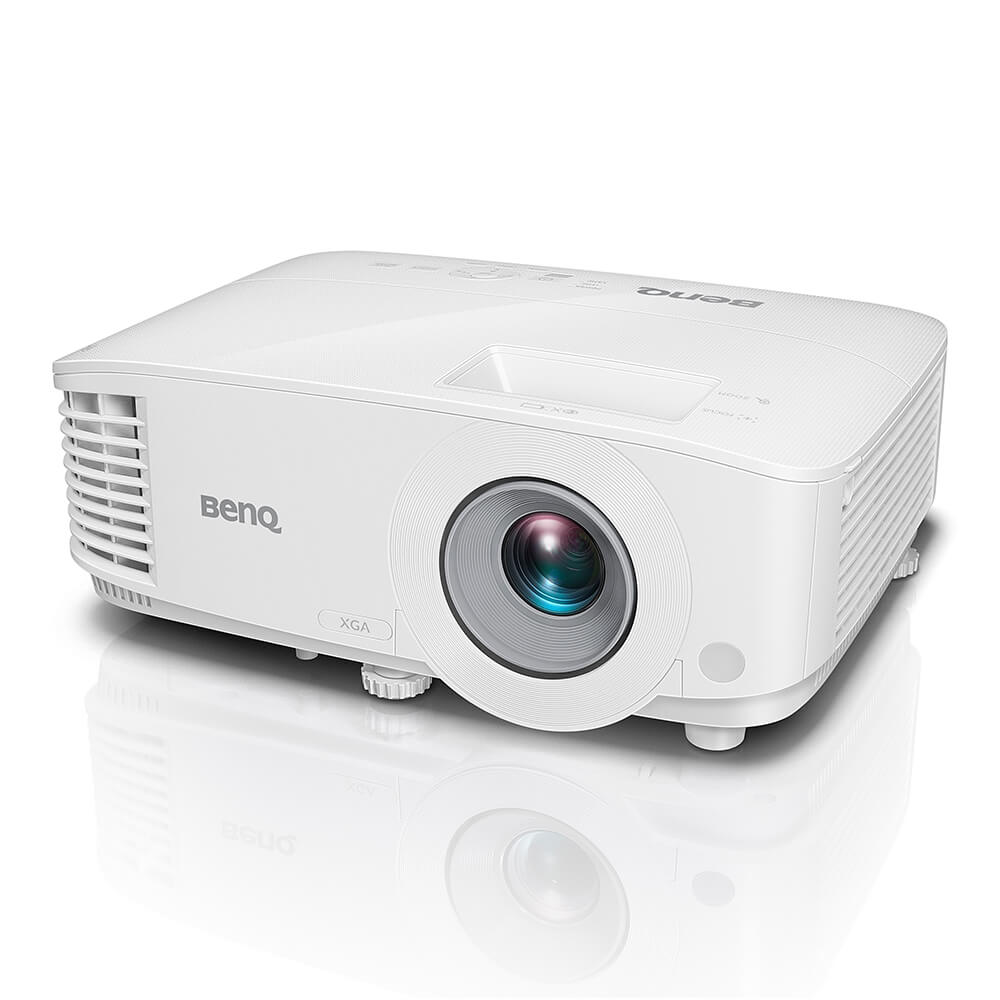

MX604



















  • Projection System : DLP
  • Native Resolution : XGA, 1024 x 768
  • Resolution Support : VGA(640 x 480) to WUXGA_RB(1920 x 1200)*RB-Reduced Blanking
  • Brightness (ANSI lumens) : 3600lm
  • Contrast Ratio (FOFO) : 20000:1
  • Display Color : 30 Bits (1,07 billion colors)
  • Native Aspect Ratio : Native 4:3 (5 aspect ratio selectable)
  • Light Source : Lamp
  • Light Source Wattage : 200W
  • Light Source life :
    Normal 5000 hr
    Economic 10000 hr
    SmartEco 10000 hr
    LampSave 15000hr
  • Throw Ratio : 1.96~2.15
  • Zoom Ratio : 1.1X
  • Lens :
    F = 2.56 ~ 2.68
    f = 22 ~ 24.1 mm
    Keystone Adjustment ” 1D, Vertical +/- 40 degrees
  • Projection Offset : 110%±2.5% (Full-Height)
  • Clear Image Size (Diagonal) : 60?~180?
  • Image Size : 30?~300?
  • Horizontal Frequency : 15K~102KHz
  • Vertical Scan Rate : 23~120KHz
  • Speaker : 2W x 1
  • Interface
    PC (D-sub) : x1 (V-Sync)
    Monitor out (D-sub 15pin) : x1 (for computer 1 only)
    S-Video in (Mini DIN 4pin) : x1
    Composite Video in (RCA) : x1
    HDMI : x 2 (one share with MHL)
    USB Type A : x1 (power supply, 5V, 1.5A)
    USB Type Mini B : x 1 (Download & Page up/down )
    Audio in (3.5mm Mini Jack) : x1
    Audio out (3.5mm Mini Jack) : x1
    RS232 (DB-9pin) : x1
    IR Receiver : 2 (Front/Top)
    Security Bar : 1
  • Compatibility :
    HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility : NTSC, PAL, SECAM
  • Power Supply : AC 100 to 240 V, 50/60 Hz
  • Typical Power Consumption : 260W(Normal)
  • Standby Power Consumption : <0.5W
  • Acoustic Noise (Typ./Eco.) : 32/29 dB
  • Operating Temperature : 0~40?
  • Dimensions (WxHxD) : 296x116x221 mm
  • Weight : 2.3kg

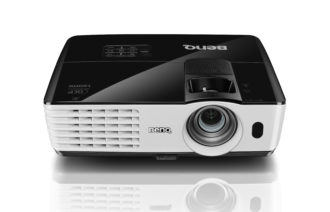

MW603

  • Resolusi: WXGA (1280X800)
  • Lumens: 3.500
  • CR: 13.000:1
  • VGA IN: 2X
  • VGA OUT: 1X
  • S_VIDEO: 1X
  • HDMI: 1X
  • USB: 1X
  • Rj-45: –
  • AUDIO: IN/OUT
  • FULL JD: Yes
  • Special Feature: SMART ECO, VERTICAL KEYSTONE

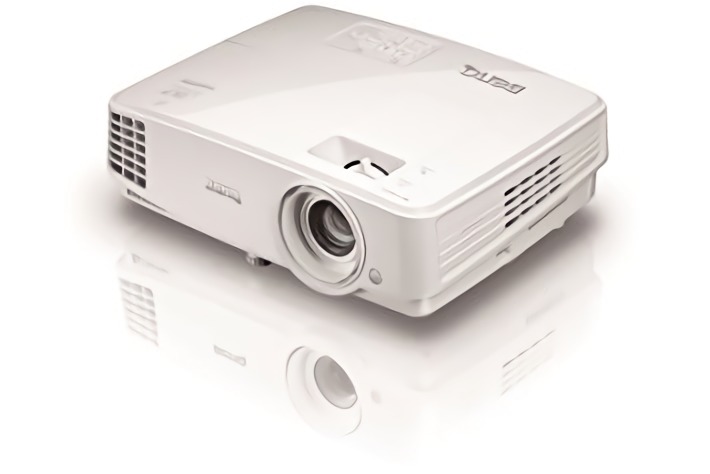

MH530















  • Projection System : DLP
  • Native Resolution : 1080p (1920 x 1080)
  • Brightness (ANSI Lumens) : 3200AL
  • Contrast Ratio : 10000:1
  • Display Color : 1.07 Billion Colors
  • Lens : F=2.55-2.68, f=22-24.1mm
  • Aspect Ratio : Native 16:9 (5 aspect ratio selectable)
  • Throw Ratio : 1.47-1.62 (95? ±3% @ 3.1m)
  • Image Size (Diagonal) : 70?~150? / 300
  • Zoom Ratio : 1.1:1
  • Lamp Type : 196W
  • Lamp Mode (Normal/Economic/SmartEco/LampSave) : 4000/6000/6500/10000 hours
  • Keystone Adjustment : 1D, Vertical +/- 40 degrees
  • Projection Offset : 116% ±5%
  • Resolution Support : VGA(640 x 480) to WUXGA_RB(1920 x 1200) * RB= Reduced blanking
  • Horizontal Frequency : 15k~102KHz
  • Vertical Scan Rate : 23 ~ 120 Hz
  • HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • Video Compatibility : NTSC, PAL, SECAM
  • Dimensions (WxHxD) : 283x95x222 mm
  • Weight : 1.96KG
  • Audible Noise (Normal/Economic Mode) : 33/28 dBA (Normal/Economic mode)
  • Power Supply : AC100 to 240 V, 50 to 60 Hz
  • Power Consumption : Normal 270W. Eco 220W. Standby <0.5W
  • 3D Support and Compatibility : PC: 120Hz Frame Sequential 3D for resolutions up to WXGA, PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
  • Video: 60Hz Frame Sequential 3D for resolutions up to 480i

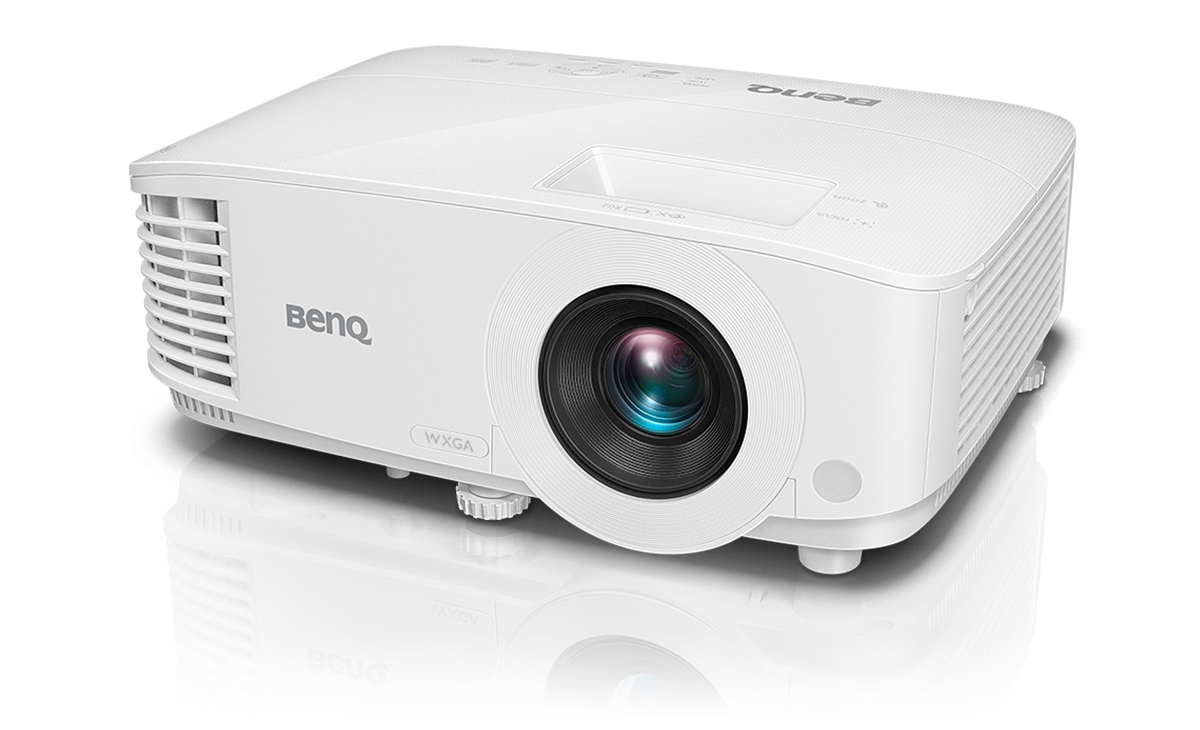

MW612

Sistem ProjectorDLP Technology
Resolusi NativeWXGA (1200 x 800)
Brightness4000 lumens
Rasio Kontras2000:1
Rasio Aspek16 : 10
Rasio Besaran (Zoom)1.1x
InputComputer In (D-sub 15pin Female) x1, Composite Video(RCA) x1, S-Video, HDMI-1, HDMI-2/MHL x1, Audio in(mini jack) x1, USB TypeA(1.5A power) x1, USB Type min B(For Page up/down and FW upgrade) x1, RS232 In (D-sub 9pin, male) x1, IR Receiver(Front+Top) x2
OutputAudio out (Mini Jack) x 1
Speaker2W








MH733

Sistem ProjectorDLP Technology
Resolusi Native1080P Full HD (1920 x 1080)
Brightness4000 lumens
Rasio Kontras16.000 : 1
Rasio Aspek16 : 9
Rasio Besaran (Zoom)1.3:1
Input2x PC (D-sub), 2x HDMI, 2xUSB Type A, 2x USB Type Mini B, 1x Audio in (3.5mm Mini Jack), 1x LAN (RJ45), 1x RS232 (DB-9pin), 2x IR Receiver, 1x Security Bar
OutputMonitor out (VGA), Audio out (3.5 mm)
Speaker10W x 1
Lain-lainSmart Eco, H+V+ Corner Keystone, Auto Keystone, Lan Control

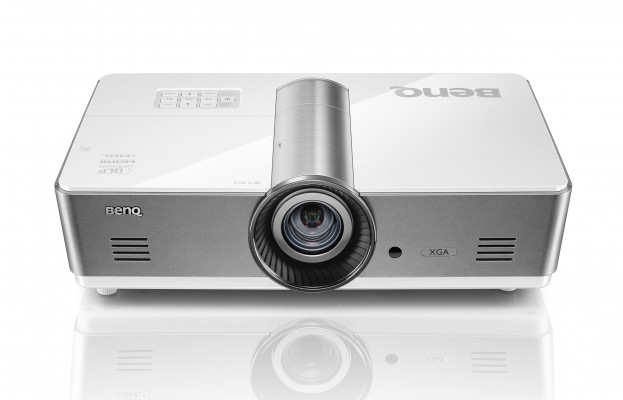

SX920












Projection System

DLP

Native Resolution

XGA (1024 x 700)

Brightness

5000 ANSI Lumens

Contrast Ratio

 5000:1

Aspect Ratio

Native 4:3 (5 aspect ratio selectable)

Projection Lens

F=2.45~3.07, f=15.78~25.12?

Throw Ratio?

1.41~2.25

?

Lamp Type

350W

Power Supply?

AC 100V to 240V, 50Hz to 60Hz

Power Consumption?

Typical 490W, Network Standby <6W, Stanby Power <0.5W





Interface?

  • Computer In (D-sub 15pin) x 1 (Share with component)
  • Monitor Out (D-sub 15pin) x 1
  • Composite Video In (RCA) x 1
  • S-Video In (Mini DIN 4pin) x 1
  • HDMI x 2 (One with MHL)
  • Audio In (Mini Jack) x 1
  • Audio L/R in (RCA) x 1
  • Audio Out (Mini Jack) x 1
  • Speaker 10W x 2
  • LAN (RJ45) x 1 (LAN Control)
  • USB (Type A) x 1 (5V/ 1.5A Power Supply)
  • RS232 (DB-9pin) x 1
  • DC 12V Trigger x 1
  • IR Receiver x 2

Dimension

411.4 x 118.4 x 267.5mm

Weight

4.9 kg

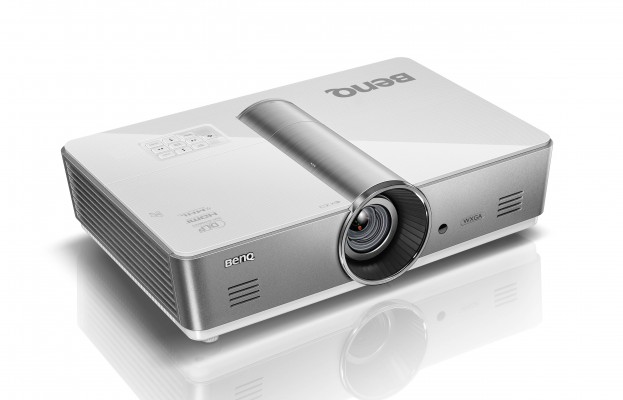

SW921

  • Resolusi: WXGA (1280X800)
  • Lumens: 5.000
  • CR: 5.000.1
  • VGA IN: 1X
  • VGA OUT: 1X
  • S-VIDEO: 1X
  • HDMI: 2X
  • USB: 1X
  • Rj-45: 1x
  • Audio: IN/OUT
  • Full 3D: YES
  • Bracket: –
  • Special Feature: SMART ECO, H+V+ CORNER KEYSTONE, VERTICAL LENS SHIFT, CENTER LENS
  • weight: 4.9KG
  • Lamp Life: 2.500

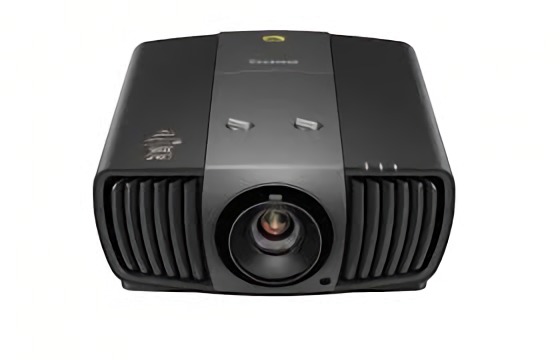

W11000

  • Projection System : DLP
  • Native Resolution : 4K UHD (3840 x 2160)
  • Brightness : 2200 ANSI Lumens?
  • Contrast Ratio (FOFO) : 50000:1
  • Display Color : 30 Bits (1,07 billion colors)
  • Rec.709 Coverage : 100%
  • DCI-P3 Coverage : 81%
  • Native Aspect Ratio : 16:9
  • Light Source : Lamp
  • Light Source Wattage : 240w
  • Throw Ratio : 1.36 - 2.03 (100" @ 3m)
  • Zoom Ratio : 1.5x
  • Lens : F/# = 2.05 - 2.37 f = 20.54 - 30.31
  • Lens Shift : Vertical: ± 65% / Horizontal: ± 27%
  • Clear Image Size (Diagonal) : 95"~180"
  • Dimensions (WxHxD) : 470.7 x 224.9 x 564.7 mm
  • Weight : 14.8 kg (32.6 lbs)







X12000

  • Projection System : DLP
  • Native Resolution : 4K UHD(3840 x2160)
  • Brightness : 2200 ANSI Lumens?
  • Contrast Ratio (FOFO) : 50000:1
  • Display Color : 1.07 Billion Colors?
  • Rec.709 Coverage : 99%
  • DCI-P3 Coverage : 96%
  • Native Aspect Ratio : 16:9
  • Light Source : HLD
  • Light Source Wattage : 395W
  • Light Source Life :
  • Normal 20000 hours
  • Economic 20000 hours
  • Throw Ratio : 1.36 – 2.03 (100? @ 3m)





LU9715











Sistem ProjectorDLP Technology
Resolusi NativeWUXGA (1920 x 1200)
Brightness8000 Lumens
Rasio Kontras100,000:1
Rasio Aspek
  • Native 16:10 {5:4/4:3/16:10/16:9/1.88/2.35/Theaterscope/Source(Auto)/Unscaled(Real) selectable}ý

Rasio Besaran (Zoom)
  • Ultra Short Throw (5J.JCY37.001) : Fixed
  • Wide Fix (5J.JAM37.011) : Fixed
  • Ultra Wide (5J.JAM37.061) : 1.25:1
  • Wide Zoom (5J.JAM37.021) : 1.41:1
  • Standard (5J.JAM37.001) : 1.3:1
  • Semi Long (5J.JAM37.051) : 1.65:1
  • Long Zoom1 (5J.JAM37.031) : 1.5:1
  • Long Zoom 2 (5J.JAM37.041) : 1.55:1

Ukuran Gambar
  • Diagonal : 80"-500" (Standard lens)

Input
  • Computer 1 in (D-sub 15pin)x 1
  • Computer 2 in (5BNC, R/G/B/H/V)x 1
  • HDMI (1.4a) x 1 (Compatible with HDCP)
  • DVI-D in x 1 (Compatible with HDCP)
  • LAN (RJ45) x 1 (LAN Control)
  • 3G-SDI x 1 (Input/Output)
  • HDBaseT x 1 (Shared with RJ45)
  • DisplayPort x 1
  • Trigger x 1
  • RS232 (DB-9pin) x 1
  • Wired Remote x 1
  • IR Receiver x 2 (Front Rear)

Output
  • Monitor out (D-sub 15pin) x 1
  • 3D Sync x 1 (Out)

Daya / Power
  • AC 100-130V, 50 to 60Hz
  • AC 200-240V, 50 to 60Hz

Konsumsi Daya
  • 885W (max): Standby Power <0.5W

Dimensi Produk
  • 500 x 211 x 583 mmý (W x H x D)

Berat Produk28 Kg
  • Lens excluded

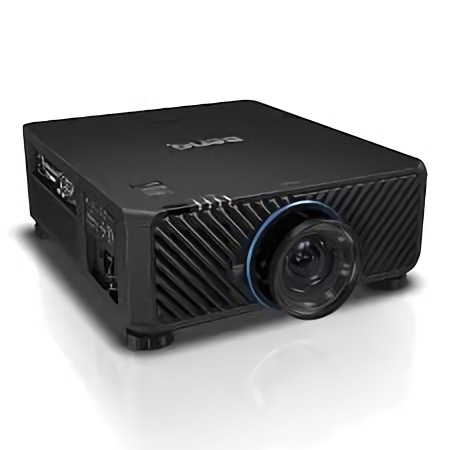

LU9915

  • Projection System : DLP 0.67? WUXGA
  • DMD type : DC3 DMD Chip
  • Native Resolution : 1920×1200 pixels
  • Brightness : 10000 ANSI Lumens
  • Contrast Ratio : 100,000:1
  • Display Color : 1.07 Billion Colors
  • Aspect Ratio : Native 16:10 (9 aspect ratio selectable)
  • Light Source : Laser diodes
  • Light Source Life*(Normal/Eco) : 20000/45000 hours
  • Connectivity I/O Port :
    HDMI x1
    DisplayPort x1
    DVI-D In x1
    Computer In-1 (D-sub 15pin, Female) x1
    Computer In-2(5BNC,YBPBR) x1
    Monitor out (D-sub 15pin,Female) x1
    3G-SDI In x1
    3G-SDI Out x1
    HDBaseT(RJ45 for Video Display and Network control) x1
    RS232 In (D-sub 9pin, male) x1
    3D Sync out x1
    3D Sync In x1
    Wired Remote In x1
    12V Trigger x1
  • Resolution Support : VGA(640 x 480) to WUXGA(1920 x 1200)
  • Horizontal Frequency : 15K – 92kHz
  • Vertical Scan Rate : 23 – 85Hz
  • HDTV/UHDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • Video Compatibility : NTSC, PAL, SECAM?
  • Dimensions (WxHxD) : 500 x 211 x 583 mm
  • Weight : 28kg
